30TB or 40TB native
Read and write Standard 30TB and Premium 40TB LTO-10 cartridges. Choose capacity by cartridge type.
MagStor
MagStor LTO-10 30TB / 40TB MAX Thunderbolt / USB4 Desktop Tape Drive TAA
- Regular price
- $ 25,099.99
- Sale price
- $ 25,099.99
- Regular price
-
$ 26,399.00
Couldn't load pickup availability
MagStor LTO-10 30TB / 40TB MAX Thunderbolt / USB4 Desktop Tape Drive TAA
- Regular price
- $ 25,099.99
- Sale price
- $ 25,099.99
- Regular price
-
$ 26,399.00
Description
MAX Series · Full-height desktop
LTO-10 capacity.
MAX desktop performance.
30TB / 40TB native · Thunderbolt / USB4
TRB5-L10-MAXSAS expansion3-year limited warranty
TAA Compliant
TRB5-L10-MAX · LTO-10 MAX desktop
30TB / 40TBNative capacity per compatible LTO-10 cartridge
400 MB/sPublished native maximum
Thunderbolt / USB4Desktop host connection
TAA procurement
TAA-compliant tape hardware.
TRB5-L10-MAX is listed by MagStor as TAA compliant. For purchases with Trade Agreements Act requirements, ask MagStor for model-specific documentation and confirmation of the exact supplied configuration before ordering.
Review the exact hardware configuration and procurement documentation against your purchasing requirements; accessories and added devices do not automatically inherit the drive’s status.
Built around your workflow
A full-height LTO-10 archive on your desktop.
The TRB5-L10-MAX combines a full-height LTO-10 mechanism, Thunderbolt / USB4 host connectivity and a MAX desktop chassis with internal power and enhanced airflow. Use 30TB Standard or 40TB Premium LTO-10 cartridges to grow a removable archive, with an external SAS expansion port for compatible devices.
Model-specific capabilities
High-capacity tape. A direct desktop workflow.
Full-height performance
Up to 400 MB/s native transfer rate. Source storage, software, file sizes and verification affect real job speed.
Thunderbolt / USB4
Connect a supported host with the included cable. Verify the host interface, operating system and model-specific drivers.
SAS expansion
Connect compatible SAS storage devices through the external expansion port. Confirm device, cable, power and software requirements.
System requirements
Compatible host interface
Use a supported Thunderbolt / USB4 computer. The current product specification lists Thunderbolt 3, Thunderbolt 4 and USB4 host compatibility, subject to operating system and driver support. A USB-C connector alone does not establish compatibility.
Model-specific drivers and application
Install the correct interface-controller and tape drivers. Confirm the exact operating system, application version and LTO-10 support as one configuration.
Power and ventilation
Connect AC power to the completed MAX enclosure, keep ventilation clear and use a stable, climate-controlled location.
Additional requirements
Sustained source performance
Use source storage that sustains the intended transfer rate throughout long jobs. Suitable SSD, RAID or a fast network source can help; a 1GbE source can bottleneck transfers. Include verification time in archive planning.
Software and licensing
Choose compatible backup, archive or LTFS software and confirm licensing separately. Retain catalogs and any encryption keys, and test restores.
LTO-10 media and migration
Use supported LTO-10 data cartridges. Keep an older compatible drive available to read or migrate LTO-9, LTO-8 and earlier archives. Confirm media handling and environmental limits for the supplied configuration.
Offline by design
Keep an archive you can take offline.
LTO uses removable cartridges for long-term backup and archive copies. After writing and verifying your data, eject the cartridge and store it separately from connected systems. This physical separation supports air-gapped retention, offsite rotation and protection from threats that reach online storage.
Own your archive media
Keep physical control of retained data without recurring cloud capacity charges for those tape copies.
Long-term retention
Media is designed for a shelf life of up to 30 years under recommended storage conditions. Follow the cartridge’s handling and storage guidance.
TAA Compliant
For procurement that requires TAA compliance, confirm the required configuration with MagStor before ordering.
Main features
Designed for a complete tape workflow.
Offline protection
Unload verified media to retain a physically offline copy separate from the connected host.
LTFS and backup workflows
Choose compatible software for the required file-based archive or managed backup workflow.
Removable long-term storage
Plan cartridge labeling, catalogs, verification and periodic restore tests.
Complete configuration matters
Match the drive, interface, host, drivers, software and media format as one workflow.
Model-specific installation
Use the supported enclosure and installation requirements for this exact configuration.
Support for the workflow
Contact MagStor with the SKU and serial number for setup, firmware and troubleshooting questions.
Match the cartridge to the drive.
| Data cartridge | Native capacity | Support |
|---|---|---|
| LTO-10 Standard | 30TB | Read / write |
| LTO-10 Premium | 40TB | Read / write |
| LTO-9, LTO-8 and earlier | — | Not supported |
Up to 75TB / 100TB at 2.5:1 compression, respectively; actual compression depends on the data. Plan from native capacity, allowing for formatting, LTFS indexes and application overhead.
Backup, archive and LTFS applications.
Use an application that supports LTO-10 and the complete host configuration. Confirm the application version, operating system, interface, drivers and media format before purchase. LTFS access requires compatible hardware and software; licensing and setup requirements apply.
Trusted across industries
Archive the work you need to keep.
From media production and enterprise backup to healthcare, government, research, surveillance, legal, and cloud infrastructure, MagStor LTO solutions are used anywhere large amounts of data require secure, removable, offline-capable storage.
Plan the software, verification, media rotation and access procedures around your own retention requirements.
Media & Entertainment
Archive camera originals, project files, completed productions, photography and audio masters.
- Video production
- Broadcast
- Animation & VFX
- Photography
- Audio production
- Digital asset management
- Project handoff
- Long-term content retention
Enterprise IT
Keep scheduled backups, retention copies and an offline recovery copy of critical systems and business data.
- Backup
- Disaster recovery
- Air-gapped ransomware protection
- Offsite rotation
- Data migration
- Compliance retention
- Long-term storage
Government & Public Sector
Build controlled records-retention workflows and select the documented TAA-compliant configuration when procurement requires it.
- Federal agencies
- State & local government
- Defense contractors
- Public records
- Digital evidence
- Public safety
- TAA procurement
- Records retention
Healthcare & Life Sciences
Support long-term imaging and research archives within the organization’s approved security, access and retention procedures.
- PACS imaging
- EMR / EHR retention
- Medical research
- Genomics
- Laboratory data
- HIPAA-sensitive data protection
- Clinical archives
Education & Research
Preserve research datasets, instrument output, simulation results, CAD projects and geospatial collections.
Retain institutional records, digitized collections and preservation masters with an organized restore process.
- Universities
- Scientific research
- High-performance computing
- Climate data
- Astronomy
- Engineering datasets
- Institutional data preservation
Security & Surveillance
- CCTV retention
- Body camera footage
- Video evidence
- Smart city deployments
- Public safety
- Long-term surveillance storage
Legal & Financial
- eDiscovery
- Audit records
- Client files
- Regulatory compliance
- Financial records
- Case evidence
- Offline business continuity copies
Industrial & Manufacturing
- CAD / CAM
- Product lifecycle data
- Engineering drawings
- Machine vision
- Quality inspection
- Factory automation data
- Durable offline retention
Cloud, MSP & Data Center
- Customer backups
- Cold storage
- Multi-tenant environments
- Offsite archive
- Disaster recovery
- Long-term retention
- Service provider data protection
Technical specifications
| Model | TRB5-L10-MAX |
|---|---|
| Mechanism | Full-height LTO-10 |
| Native capacity | 30TB Standard / 40TB Premium LTO-10 |
| Compressed capacity | Up to 75TB / 100TB at 2.5:1; data dependent |
| Native transfer rate | Up to 400 MB/s |
| Host interface | Thunderbolt / USB4 over USB-C |
| Expansion | External SAS port for compatible devices |
| Power supply | Internal |
| Shipping dimensions | 17 × 11 × 11 in (packaged product) |
| Shipping weight | 12 lb (packaged product) |
| System country of origin | USA, per current product record |
| Standard warranty | 3-year limited warranty |
Shipping measurements describe the packaged product. Request model-specific origin and TAA documentation for procurement requirements.
In the box
- MagStor TRB5-L10-MAX LTO-10 MAX Desktop Tape Drive
- Power cable
- Thunderbolt / USB4 cable
Setup and technical support
Support for the complete workflow.
Contact MagStor with the model and serial number to verify the drive, host connection, software and installation. The TRB5-L10-MAX includes a three-year limited warranty, lifetime hardware troubleshooting support and firmware guidance. Confirm service options for systems outside warranty.

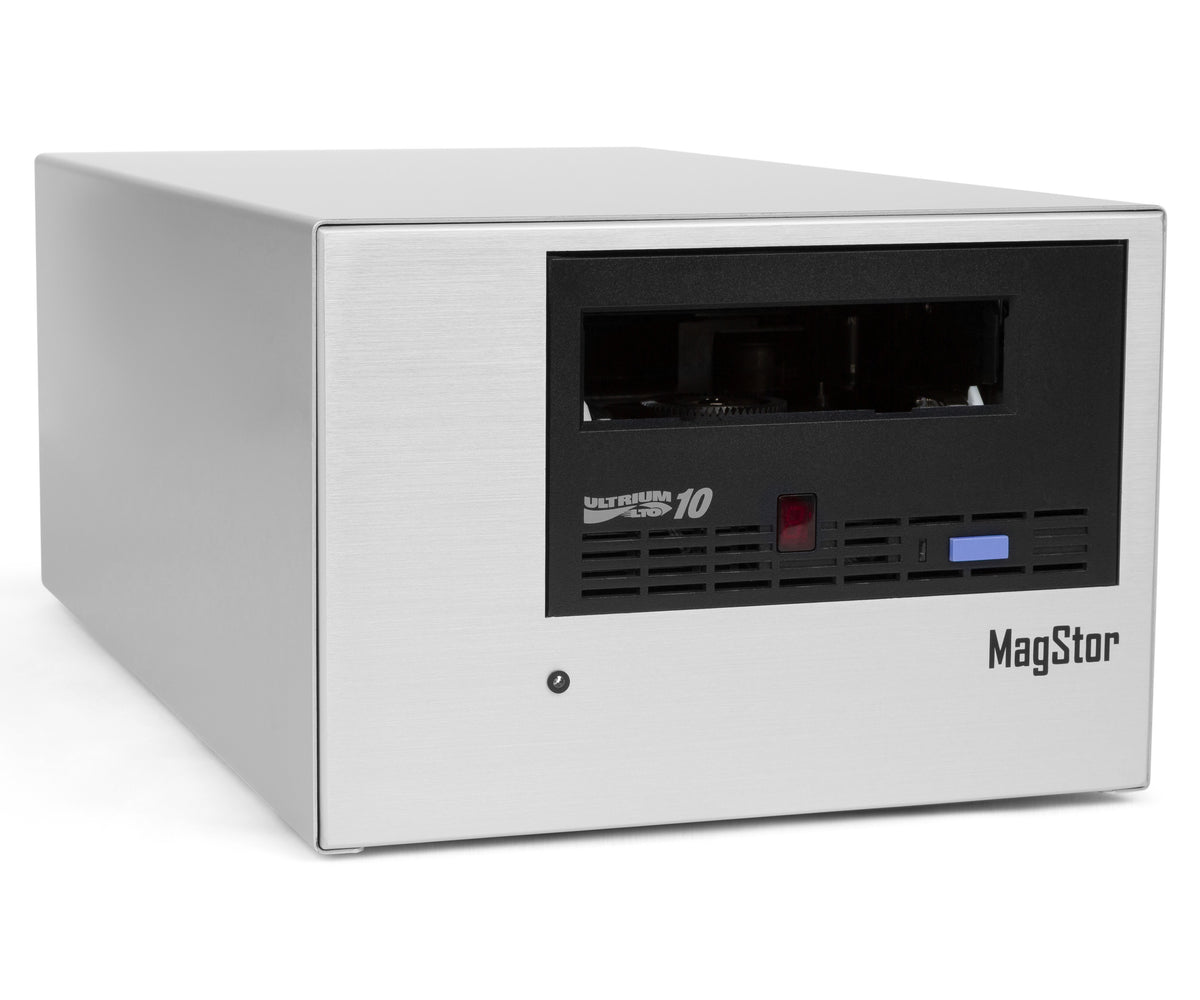

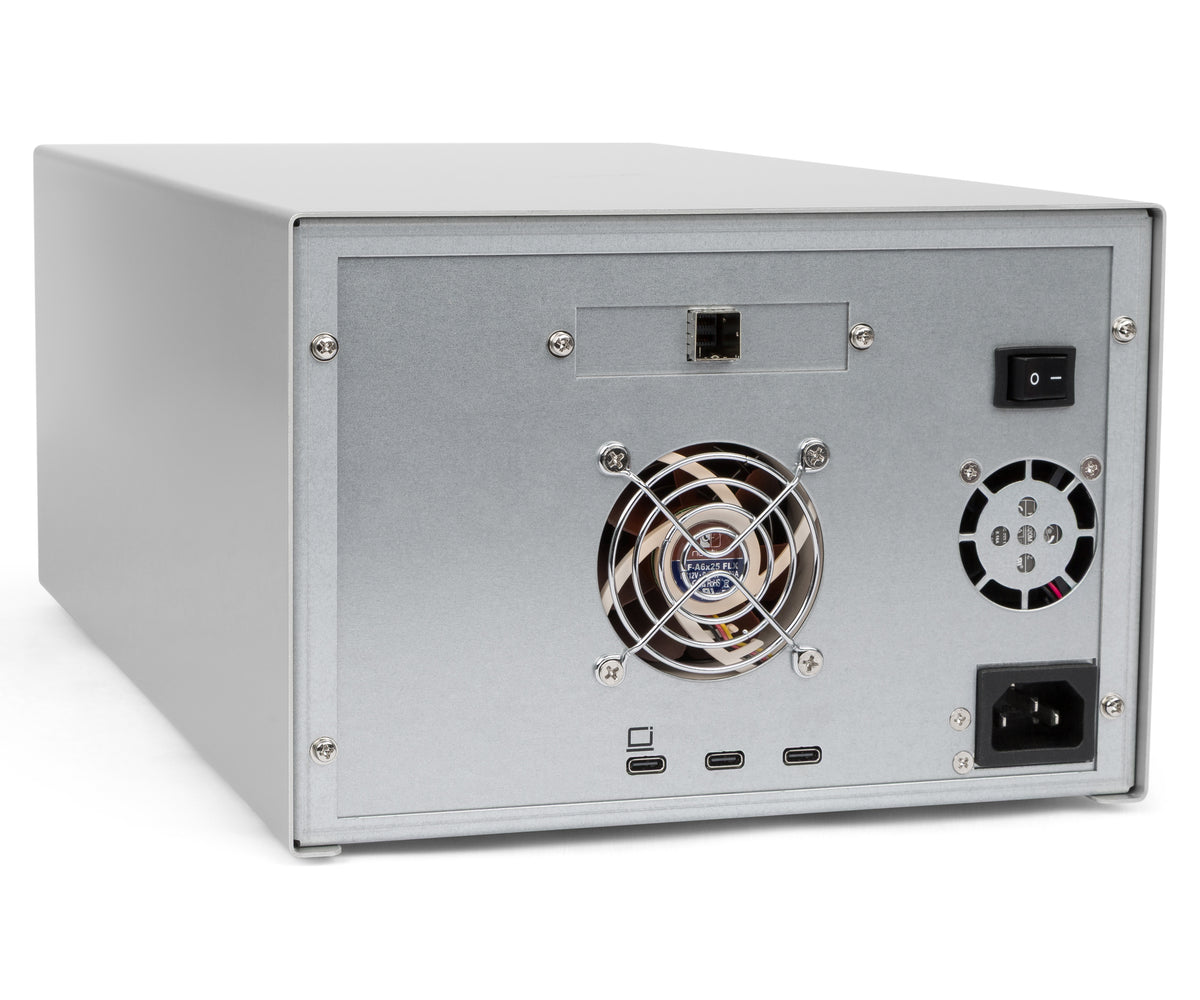

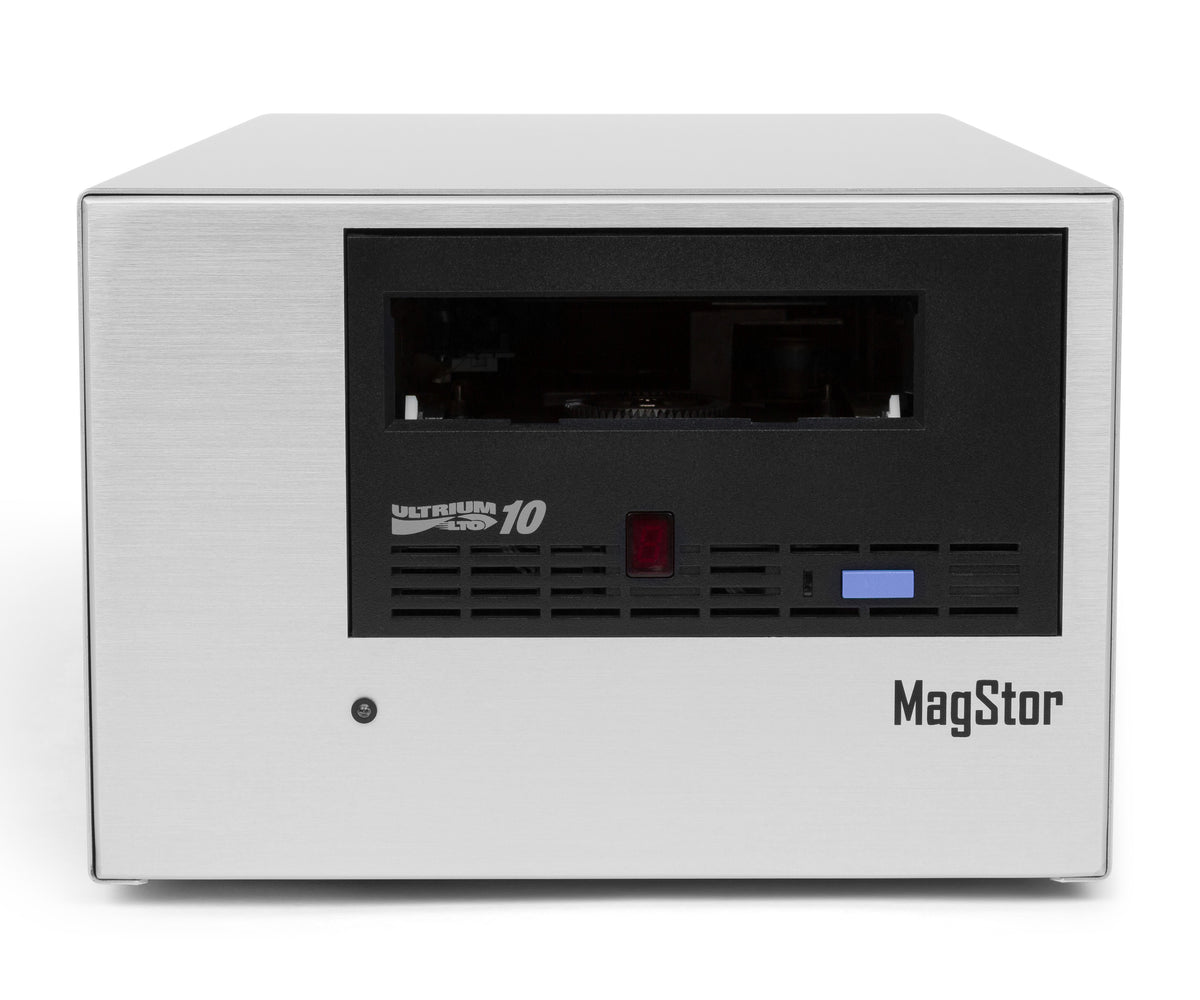

Product views
SKU: TRB5-L10-MAX
