Tape Libraries / M1000 G2

MagStor M-Series · Chassis only

M1000 G2
8-slot tape library

Compact tape automation for a single-drive workflow. Choose compatible drive modules, host connection and media for your backup or archive workflow.

8 base slots1U rack height144TB max native storage

Fully populated with 8 LTO-9 cartridges and a compatible drive. Drives and media sold separately.

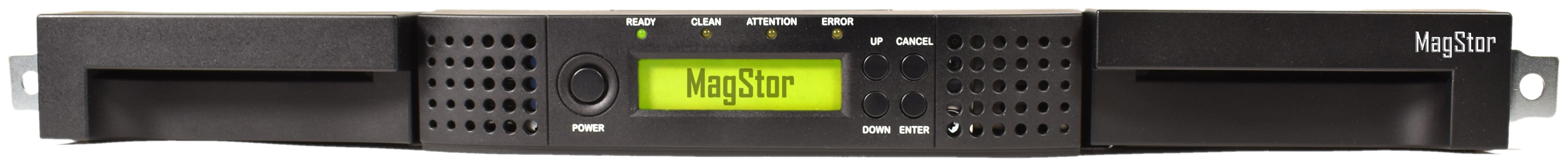

Authentic front photograph of the MagStor M1000 G2 base chassis

M1000-G2-LIB-0DRV

$ 2,749.00
$ 2,749.00
USD · chassis only

Drives, cartridges and configuration accessories are separate.

Choose your drives, capacity and connectivity
Build your system

Automation with room for your archive

M1000 G2,
in detail.

The M1000 G2 combines 8 cartridge slots with 1U rackmount library automation. This listing is the zero-drive chassis, so you can select the drive performance and host interface your workflow requires. Tape media and software are selected separately.

01

More automation, less handling

8 cartridge slots in a 1U chassis. 2 magazines · 1 mail slot.

02

Configure drive performance

1 half-height drive; no full-height support. Drive modules are selected separately.

03

All slots available

No additional per-slot capacity licensing. Choose your cartridges and software for the archive you need.

04

Hardware support

3-year standard warranty on this new chassis listing. Selected BASE/refurbished drive options carry a 1-year warranty unless upgraded.

05

Removable offline retention

Eject cartridges for offsite rotation and offline storage as part of a managed backup and archive process.

06

Standards-based workflows

Use supported IBM LTO drive configurations with library-aware backup, archive or LTFS software.

Plan with native capacity

96TB with LTO-8 · 144TB with LTO-9

Native capacity with 8 compatible cartridges and an installed drive. Drives and media sold separately.

144TBMaximum native example

Compressed capacity depends on the data; use native capacity for conservative planning.

A defined footprint

8 slots. 1U. No expansion modules.

The M1000 G2 is not expandable. Choose the installed drive configuration for its fixed chassis capacity, or compare the M3000E / M6000E platforms for future module growth.

Drive modules

Match capacity, performance and connectivity.

1 half-height drive; no full-height support. The shared configuration choices above enforce the supported combinations and quantities.

Drive optionNative cartridgeNative rate / driveInterface
LTO-8 HH12TBUp to 300 MB/sSAS or FC
LTO-9 HH18TBUp to 300 MB/sSAS or FC

HH = half-height; FH = full-height. Rates are maxima per drive, subject to host, source storage and software. BASE options use recertified mechanisms with a 1-year standard drive warranty. Other configured choices may appear in the configurator; confirm the exact part list before purchase.

Host connection

Choose the path to your computer.

The drive module supplies the SAS or Fibre Channel interface. Thunderbolt / USB4 and 10GbE workflows use compatible SAS drives plus a separately selected bridge; those interfaces are not built into the bare chassis.

SAS

Compatible SAS host adapter and cabling to the installed drives.

Fibre Channel

Compatible FC host adapter or fabric, ports and fiber cabling.

Thunderbolt / USB4

SAS drives with a separately selected MagStor 1U bridge. The configurator adds the required bridge to the parts list.

10GbE

SAS drives with a separately selected ePro 10G bridge and compatible host/software setup.

Software & workflow

Use software that understands a tape library.

MagStor libraries use industry-standard LTO and SCSI communication with IBM LTO drive mechanisms. Select the library-aware application and edition for your operating system, tape generation and automation workflow.

Enterprise backup

Veeam · NetBackup · Commvault · Arcserve · Retrospect

Archive & LTFS

Archiware P5 · YoYotta · XenData

Operating systems

Windows · macOS · Linux, subject to the host driver and application requirements.

Examples to evaluate, not a certification list. Standalone-only LTFS tools may not control library automation; confirm the required library-support edition. No desktop LTFS software license is included with this chassis SKU.

Technical specifications

Model / part number
M1000 G2 · M1000-G2-LIB-0DRV
Base cartridge slots
8
Base rack height
1U
Cartridge management
2 magazines · 1 mail slot
Drives included
None — this is a zero-drive chassis SKU
Base drive support
1 half-height drive; no full-height support
Drive generation / interface
LTO-8 or LTO-9 half-height; compatible SAS or Fibre Channel modules
Slot licensing
No additional per-slot license
Maximum cartridge slots
8 — fixed chassis
Power
Standard chassis configuration
Standard chassis warranty
3 years

Included hardware

In the box

  • Library chassis without LTO drive modules
  • Rackmount kit
  • US power cable
  • Manual / user documentation

Drive modules, tape cartridges, host adapters, data cables and software are additional items unless explicitly included in the selected configuration.

Warranty & support

3-year standard chassis warranty.

MagStor provides technical support for the selected library configuration. BASE and refurbished drive options carry a 1-year warranty unless an eligible upgrade is selected; review the drive-specific terms.

Before you order

Does this price include tape drives?

No. M1000-G2-LIB-0DRV is the zero-drive chassis. The configuration summary prices the additional parts you select separately from the chassis-only price above.

Can this library grow later?

This model is not expandable. Its cartridge capacity remains 8slots.

How should I plan software and media?

Match media to the installed drive generation and choose software with the required tape-library support. Use the parts list to verify the complete host connection and accessories.
