Matched host interface
8G Fibre Channel connectivity; verify the host adapter, cabling, drivers and software as one configuration.
MagStor
MagStor LTO8 HH FC 1U Rackmount 12TB LTFS , FC-1U-HL8 LTO-8 RM TAA
- Regular price
- $ 15,649.00
- Sale price
- $ 15,649.00
- Regular price
-
Add a second internal drive
You can add a compatible second internal drive now or any time later.
The wiring supports adding a second drive later. Confirm any mounting parts and installation requirements for your unit with MagStor.
Optional. Use Add to cart below to add the rackmount unit plus one selected internal drive per unit. They appear as separate cart items.
Review cartCouldn't load pickup availability
MagStor LTO8 HH FC 1U Rackmount 12TB LTFS , FC-1U-HL8 LTO-8 RM TAA
configurations: 1x LTO8 FC Tape Drive
- Regular price
- $ 15,649.00
- Sale price
- $ 15,649.00
- Regular price
-
Description
1U rackmount · 8G Fibre Channel
LTO-8 in your equipment rack.
8G Fibre Channel · 1U rackmount
FC-1U-HL8Backup / archive workflows
TAA Compliant
Confirm the selected drive configuration before ordering.
12TBNative capacity per compatible cartridge
300 MB/sNative maximum; configuration dependent
8G Fibre ChannelHost interface
TAA procurement
TAA-compliant tape hardware.
FC-1U-HL8 is listed by MagStor as TAA compliant. For purchases with Trade Agreements Act requirements, ask MagStor for model-specific documentation and confirmation of the exact supplied configuration before ordering.
Review the exact hardware configuration and procurement documentation against your purchasing requirements; accessories and added devices do not automatically inherit the drive’s status.
Built around your workflow
MagStor LTO8 HH FC 1U Rackmount 12TB LTFS , FC-1U-HL8 LTO-8 RM TAA

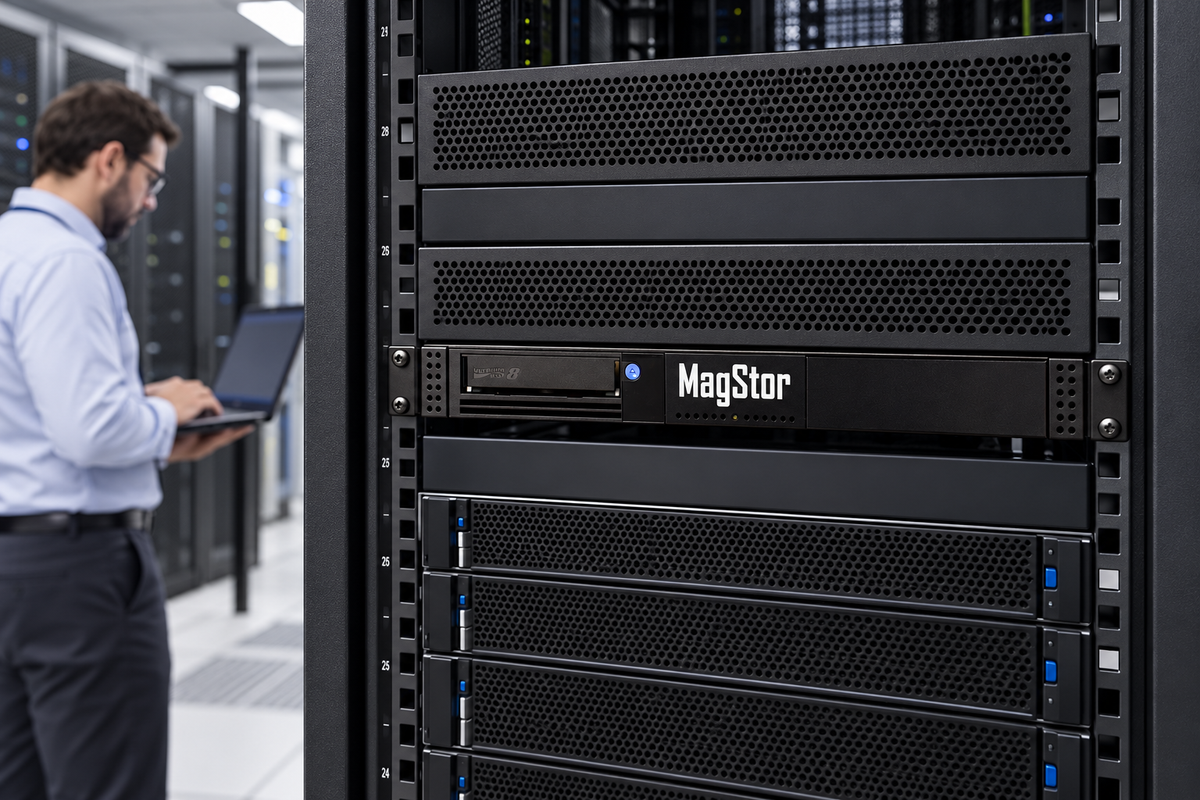

The FC-1U-HL8 combines LTO-8 tape storage with 8G Fibre Channel connectivity in a 1U rackmount format. Install the completed enclosure with clear ventilation and compatible power, host connections, drivers and tape software.
Model-specific capabilities
8G Fibre Channel · 1U rackmount
Rack installation
Use suitable rack hardware and preserve the enclosure ventilation.
LTO media workflow
Use media supported by the selected LTO generation and retain a separate compatible drive for older tapes when required.
Configuration-specific support
Match the purchased SKU, drive count, host and application. See the model details and included items below.
Archive workflows in the workspace
System requirements
Host interface and drivers
Use a compatible Fibre Channel HBA or supported fabric, matching optics/cabling, tape drivers and operating system.
Installation and power
Provide compatible AC power, secure installation and clear ventilation. Confirm rack loading and rail fit where applicable.
Software and configuration
Confirm the operating system, drivers, application, LTO generation, drive count and media format as one configuration.
Additional requirements
Sustained source performance
Plan sustained source reads and representative job testing. A 1GbE source can bottleneck tape transfers; use suitable local staging or a faster end-to-end source path.
Operating environment
Keep ventilation clear and avoid condensation, dust and rapid environmental changes. Follow the exact drive, enclosure and media operating limits. Confirm model-specific temperature and relative-humidity limits before installation.
Software and licensing
Choose compatible backup, archive or LTFS software, retain catalogs and any encryption keys, and test restores. Confirm application and initiator licensing separately.
Offline by design
Keep an archive you can take offline.
LTO uses removable cartridges for long-term backup and archive copies. After writing and verifying your data, eject the cartridge and store it separately from connected systems. This physical separation supports air-gapped retention, offsite rotation and protection from threats that reach online storage.
Own your archive media
Keep physical control of retained data without recurring cloud capacity charges for those tape copies.
Long-term retention
Media is designed for a shelf life of up to 30 years under recommended storage conditions. Follow the cartridge’s handling and storage guidance.
TAA Compliant
For procurement that requires TAA compliance, confirm the required configuration with MagStor before ordering.
Main features
Designed for a complete tape workflow.
Offline protection
Unload verified media to retain a physically offline copy separate from the connected host.
LTFS and backup workflows
Choose compatible software for the required file-based archive or managed backup workflow.
Removable long-term storage
Plan cartridge labeling, catalogs, verification and periodic restore tests.
Complete configuration matters
Match the drive, interface, host, drivers, software and media format as one workflow.
Model-specific installation
Use the supported enclosure and installation requirements for this exact configuration.
Support for the workflow
Contact MagStor with the SKU and serial number for setup, firmware and troubleshooting questions.
Cartridge compatibility
| Data cartridge | Native capacity | Support |
|---|---|---|
| LTO-8 | 12TB | Read / write |
| LTO-7 | 6TB | Read / write |
Capacity is per cartridge; compression depends on the data. Confirm media support for the installed configuration.
Choose software for your workflow
Backup, archive and LTFS applications.
Any backup, archive or LTFS application that supports the drive’s LTO generation and host configuration can be used, even if it is not listed here. Confirm support for your operating system, interface, drivers and media format; licensing and setup requirements still apply.
Backup applications
Veeam, NetBackup, Commvault, Arcserve and Retrospect are examples to evaluate for the complete configuration.
LTFS and archive applications
XPNTL Solo, Hedge Canister, Archiware P5, YoYotta, XenData, myLTO and compatible LTFS tools are examples, not a certification list.
Choose compatible archive software and confirm required licensing.
Trusted across industries
Archive the work you need to keep.
From media production and enterprise backup to healthcare, government, research, surveillance, legal, and cloud infrastructure, MagStor LTO solutions are used anywhere large amounts of data require secure, removable, offline-capable storage.
Plan the software, verification, media rotation and access procedures around your own retention requirements.
Media & Entertainment
Archive camera originals, project files, completed productions, photography and audio masters.
- Video production
- Broadcast
- Animation & VFX
- Photography
- Audio production
- Digital asset management
- Project handoff
- Long-term content retention
Enterprise IT
Keep scheduled backups, retention copies and an offline recovery copy of critical systems and business data.
- Backup
- Disaster recovery
- Air-gapped ransomware protection
- Offsite rotation
- Data migration
- Compliance retention
- Long-term storage
Government & Public Sector
Build controlled records-retention workflows and select the documented TAA-compliant configuration when procurement requires it.
- Federal agencies
- State & local government
- Defense contractors
- Public records
- Digital evidence
- Public safety
- TAA procurement
- Records retention
Healthcare & Life Sciences
Support long-term imaging and research archives within the organization’s approved security, access and retention procedures.
- PACS imaging
- EMR / EHR retention
- Medical research
- Genomics
- Laboratory data
- HIPAA-sensitive data protection
- Clinical archives
Education & Research
Preserve research datasets, instrument output, simulation results, CAD projects and geospatial collections.
Retain institutional records, digitized collections and preservation masters with an organized restore process.
- Universities
- Scientific research
- High-performance computing
- Climate data
- Astronomy
- Engineering datasets
- Institutional data preservation
Security & Surveillance
- CCTV retention
- Body camera footage
- Video evidence
- Smart city deployments
- Public safety
- Long-term surveillance storage
Legal & Financial
- eDiscovery
- Audit records
- Client files
- Regulatory compliance
- Financial records
- Case evidence
- Offline business continuity copies
Industrial & Manufacturing
- CAD / CAM
- Product lifecycle data
- Engineering drawings
- Machine vision
- Quality inspection
- Factory automation data
- Durable offline retention
Cloud, MSP & Data Center
- Customer backups
- Cold storage
- Multi-tenant environments
- Offsite archive
- Disaster recovery
- Long-term retention
- Service provider data protection
Model specifications and included items
Details below apply to FC-1U-HL8. Confirm the selected configuration and its listed accessories.
MagStor FC-1U-HL8 LTO8 HH FC Tape Drive in 1U Rackmount (RM)
MagStor Tape Drive in a 1U enclosure with a FC Interface for use in 19” rack.
Overview
The storage power of MagStor in your server rack. Give your server direct access to a LTO-8 drive for backups or offloading unused files. Take advantage of LTFS (Linear Tape File System), to easily drag and drop files to and from a 12TB LTO8 tape. Compatible with all software and formats that support LTO-8 Tape drives.
Features
- LTO8 Tape Drive
- 12TB of storage per tape
- Read / Write LTO8 and LTO 7 tapes
- 8G FC Fiber Channel Interface
- 300 MB/s Read/Write Speeds
- LTFS Compatible Drag & Drop
- TAR Compatible
- 30 Year LTO Media Archive Life
- TAA Compliant (Tape Drives Made in Japan)
- 3 Year Warranty
MagStor FC-1U-HL8 Includes:
- MagStor LTO8 HH FC Tape Drive in 1U Rackmount Enclosure
- Rack Mounting Kit
- US Power Cable
Technical Specifications
Power Supply:
100/240 VAC 50/60 Hz, 300W Rated auto switching
Dimensions & Weight (Shipping):
33 x 23 x 11 inches (L x H x W) / 24 lbs
Physical Dimensions:
431mm W x 476mm D
Software Compatibility
All software that is compatible with LTO-8 tape drives including the following.
- myLTO
- StorageDNA
- YoYotta LTFS
- Hedge Canister
- Third-Party LTFS-enhanced archive/backup software
- Third-Party TAR-based backup software, Acronis etc.
Supported Operating Systems for LTFS:
- MAC OSX 10.13 or higher
- Windows 10 or higher
MagStor® is a registered trademark of MagStor Inc
MAC™ is a trademark of Apple
Download LTO Tape Library Brochure || Download MagStor FC LTO Drive Brochure || Download MagStor Tape Drive Overview
Backup, archive and LTFS applications
Any backup, archive or LTFS application that supports the drive’s LTO generation and host configuration can be used, even if it is not listed here. Confirm the application version’s support for your operating system, interface, drivers and media format; software licensing and setup requirements still apply.
Setup and technical support
Support for the complete workflow.
Contact MagStor with the model and serial number to verify the drive, host connection, software and installation. Confirm the applicable hardware warranty and service terms for the purchased configuration.
Product views
SKU: FC-1U-HL8
